Blue Sea Systems 5029 Fuse Block Screw Term Blade

Blue Sea Systems 5029 Fuse Block Screw Term Blade

$66.51
Shipping calculated at checkout.
Details

About This

  • Blue Sea Systems Fuse Block ST Blade 12 Circuit with Cover, part number 5029, can be used for 24-hour circuits
  • Max Amps: 100A per block, 30A per circuit, Max Volts: 32V DC, Mounting :#8 (M4) Screw, Positive bus: #10-32 stud, Recommended Stud torque: 24 in-lb, Screw Terminal Torque: 18in-lb, Screw terminal type: #8-32 screws with captive star lock washer
  • Positive distribution bus with #10-32 stud

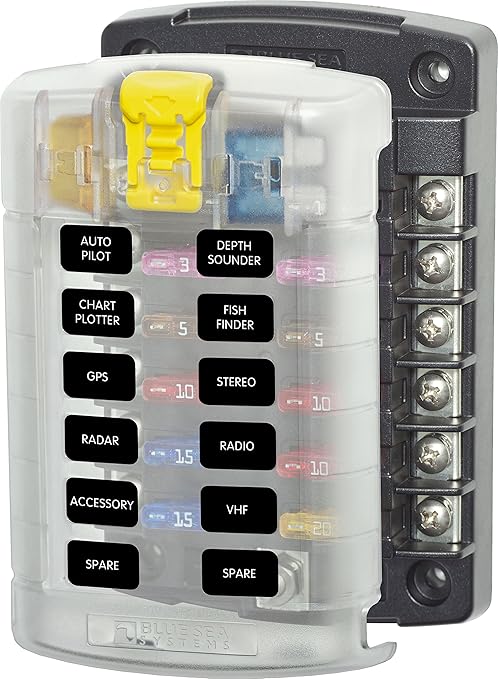

  • Clear insulating cover with label recesses and storage for two fuses, satisfies ABYC/USCG insulation requirements and has a push button latch that is easy to open
  • Accepts ring or spade type terminals and ATO/ATC fast acting blade fuses - fuses sold separately. Includes 20 write on circuit labels

Overview

  • Current Rating : 100 Amps
  • Connector Type : Screw
  • Number Of Contacts : 12
  • Mounting Type : Wall Mount
  • Material : Plastic
  • Color : With cover
  • Brand : Blue Sea Systems
  • Voltage : 32 Volts (DC)
  • Number Of Poles : 12
  • Product Dimensions : 4"W x 2"H
