HitLights Dimmable Driver and Dimmer Switch Single Integrated Unit, EZDim 120V AC – 12 V DC 40Watt Wall Dimmer Switch Compatible with Most Solid Color 12V DC Tape Lights and Fixtures, UL Listed

Name: HitLights Dimmable Driver and Dimmer Switch Single Integrated Unit, EZDim 120V AC – 12 V DC 40Watt Wall Dimmer Switch Compatible with Most Solid Color 12V DC Tape Lights and Fixtures, UL Listed
Brand: HitLights
Price: 221.25 USD
Availability: InStock

$221.25

Shipping calculated at checkout.

About This

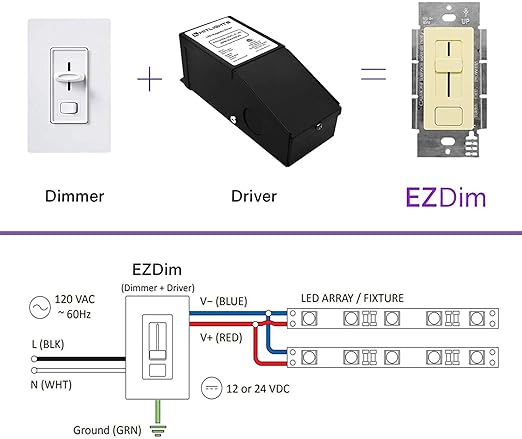

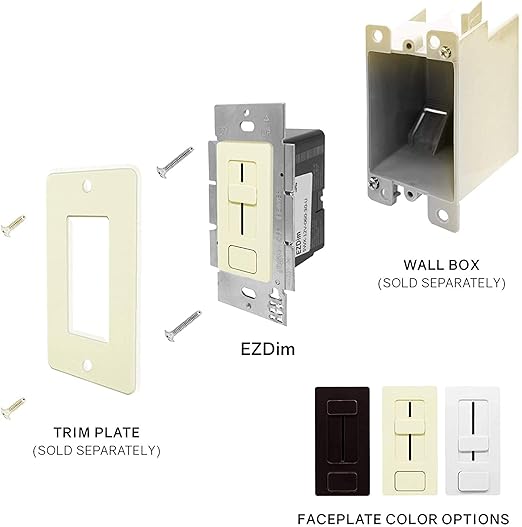

EZDim Product - First LED Driver + In-Wall Dimmer Switch in one unit, Simplifies LED installation by eliminating compatibility issues between driver and dimmer; Fits in a standard recessed electrical box
100% - 1% SMOOTHING DIMMING - Output voltage is adjustable via sliding lever, main suapply output voltages remain within the regulation limit of +/- 3%; Short circuit, thermal runway, and over voltage protection
Power failure memory - If power is interrupted, EZDim will return to setting prior to interruption; No derating required when ganging units
Input Voltage - 120VAC (108 ~ 132VAC), 50/60Hz (47 ~ 63Hz), Stand-by Power: ≤0.5W; Input Current: <1.0A @ 120VAC max load
HITLIGHTS QUALITY, UL LISTED, RoHS Certified, CE Certified & MADE IN THE USA and backed by a FIVE year warranty from HitLights for peace of mind; Contact our US-based customer service team at any time for no-hassle troubleshooting and replacement or for any questions about purchasing or installation

Overview

Operation Mode : manual
Current Rating : 1 Amps
Operating Voltage : 120 Volts
Contact Type : Normally Closed
Connector Type : Dc Power Jack
Brand : HitLights
Terminal : Screw

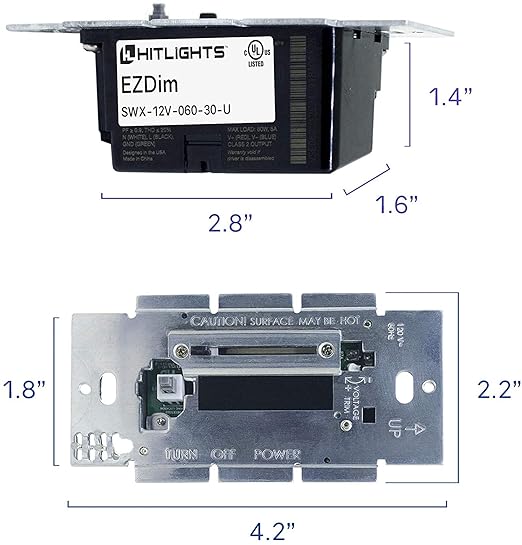

Item dimensions L x W x H : 4.65 x 2.76 x 2.68 inches
Circuit Type : parallel
Actuator Type : Push Button
Switch Type Dimmer Switch : Material Copper
: Switch Type Dimmer Switch
: Material Copper
Mounting Type Wall Mount : Specification Met ce certified,rohs certified
: Mounting Type Wall Mount
: Specification Met ce certified,rohs certified
