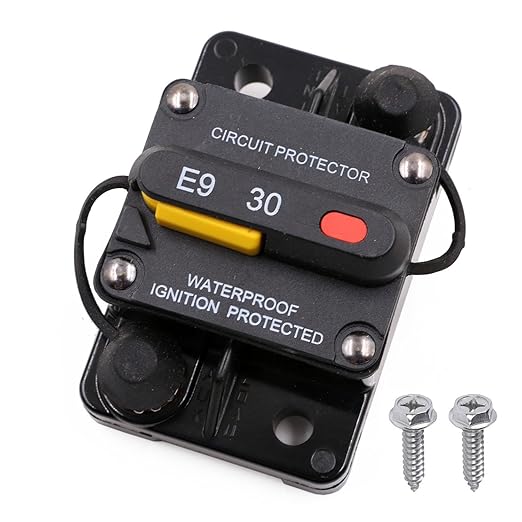

E9 30 Amp Circuit Breaker with Recessed Switch Design | Waterpoof IP67 Protection DC 12V-72V 30A Manual Reset UL Surface Mount

E9 30 Amp Circuit Breaker with Recessed Switch Design | Waterpoof IP67 Protection DC 12V-72V 30A Manual Reset UL Surface Mount

$35.51
Shipping calculated at checkout.
Details

About This

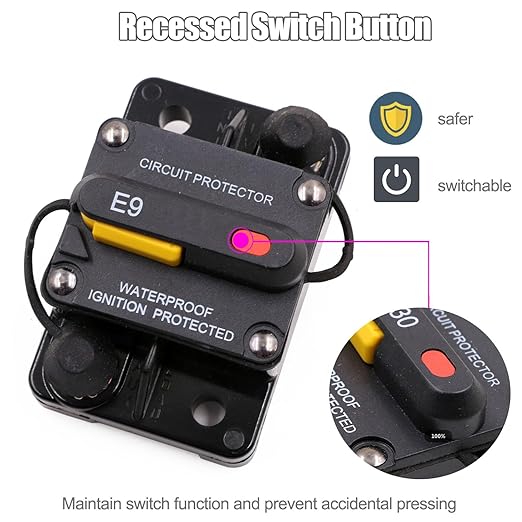

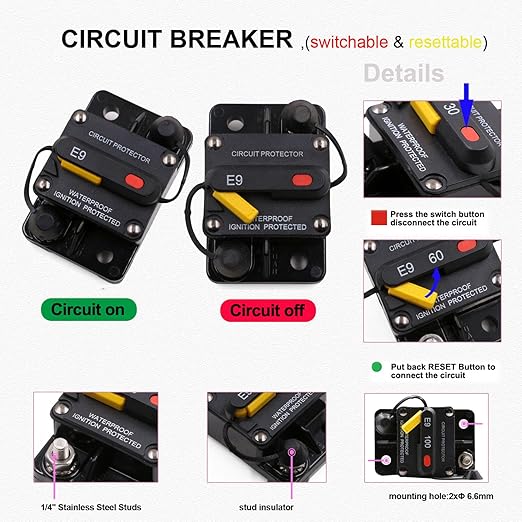

  • Reset Type:T3, Recessed Push to Trip (Switchable),Anti-miscontact switch button, can not be directly pressed by hand, need to use tools to press down.
  • Voltage:Up to 48vdc; 2,500A @ 14Vdc 1,500A @ 48Vdc

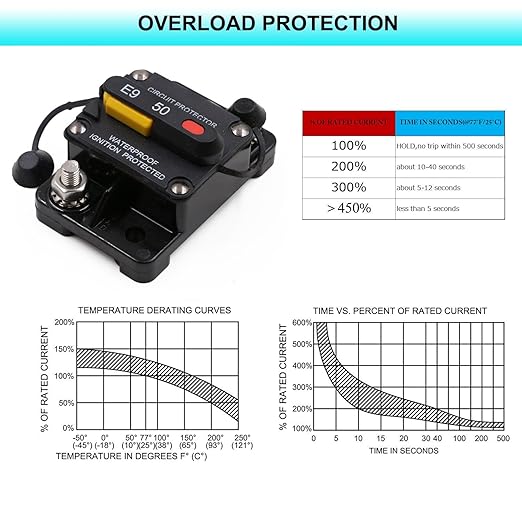

  • 30A Thermal Circuit Protector (Breaker)
  • 1/4" Stainless Steel Studs, Surface Mount

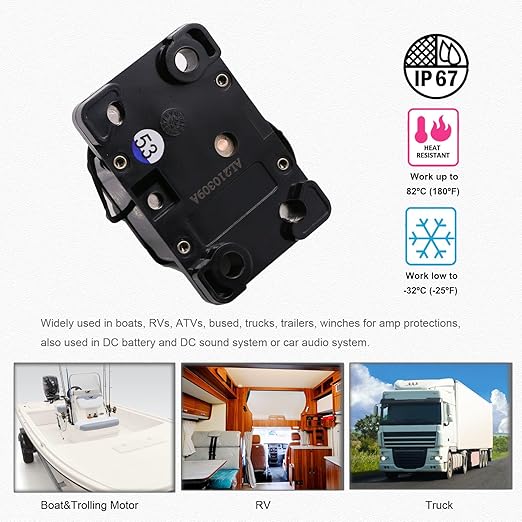

  • Operating Temperature:-32ºC (-25ºF) to 82ºC (180ºF)
  • Housing is thermalplastic UL rated 94V0

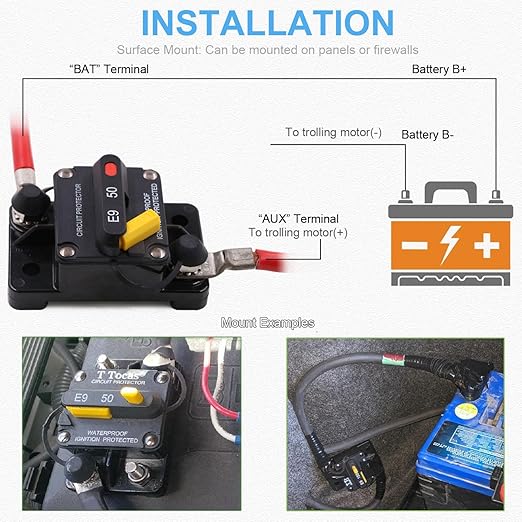

  • Typically used in auxiliary and accessory circuits in truck, bus', RVs and marine applications. Others include battery charger and DC audio system.

Overview

  • Brand : T Tocas
  • Current Rating : 30 Amps

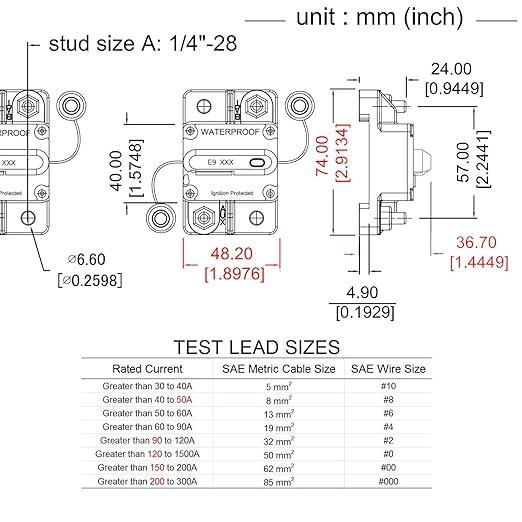

  • Product Dimensions : 2.91"D x 1.9"W x 1.44"H
  • Circuit Breaker Type : Standard
  • Mounting Type : Surface Mount
