DC Miniature Circuit Breaker, 2 Pole 500V 20 Amp Isolator for Solar PV System, Thermal Magnetic Trip, DIN Rail Mount, Chtaixi DC Disconnect Switch C20

Name: DC Miniature Circuit Breaker, 2 Pole 500V 20 Amp Isolator for Solar PV System, Thermal Magnetic Trip, DIN Rail Mount, Chtaixi DC Disconnect Switch C20
Brand: CHTAIXI
Price: 22.04 USD
Availability: InStock

$22.04

Shipping calculated at checkout.

About This

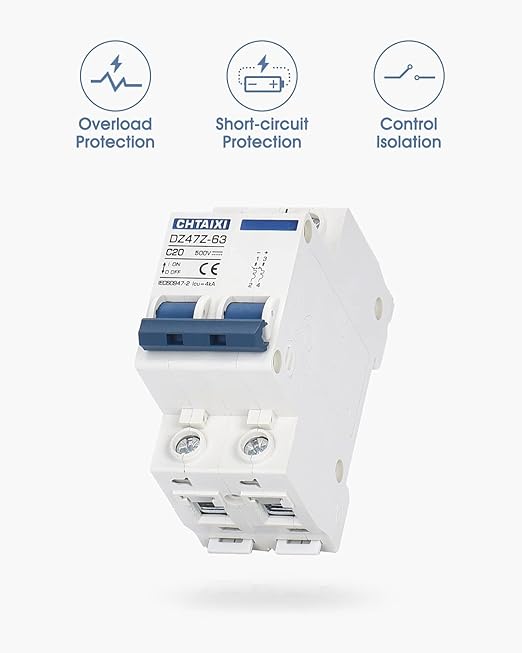

FUNCTIONS: Used to protect power distribution facilities from overload and short-circuit damage, and can also be used for control and isolation.
FAST TRIP: The electromagnetic trip system can trip immediately when the circuit is short-circuited to protect the safety of the circuit.

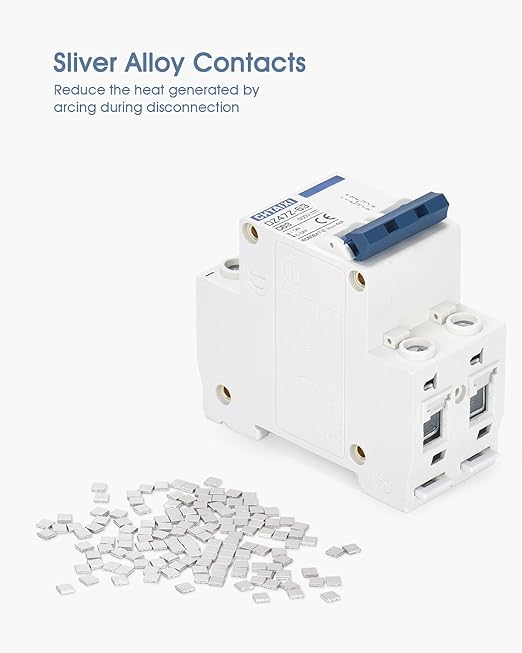

ARC EXTINGUISHING: DC arc extinguishing is more difficult than AC. This DC mini circuit breaker has a magnetic system to assist arc extinguishing.
APPLICATION: Used in DC power system, ship electric power system, solar photovoltaic system, or other DC system.

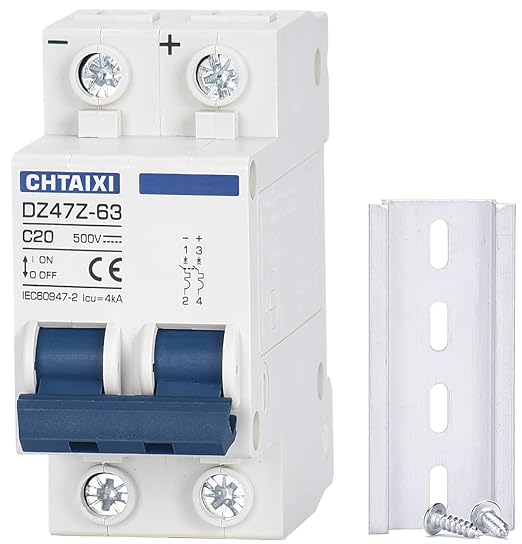

INSTALLATION: Screw clamp wires, 35mm DIN rail mount.

Overview

Brand : CHTAIXI
Current Rating : 20 Amps
Circuit Breaker Type : Standard
Mounting Type : DIN Rail Mount
Number Of Poles : 2
