About This

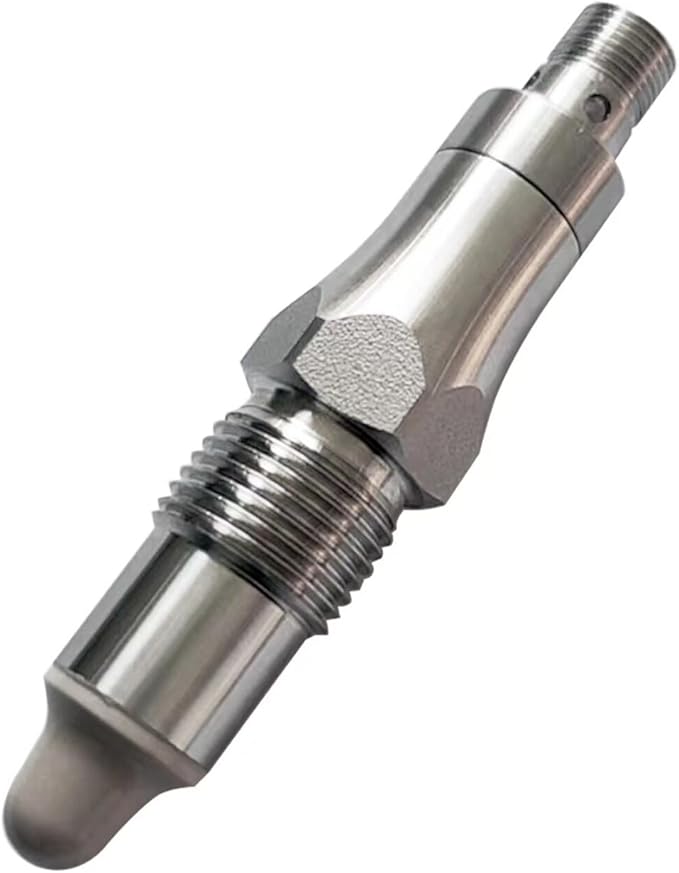

• 24 power supply, thread G1/2, contact material peek, stainless steel 304 housing,-20℃～80℃
• The electrode integrated in the sensor probe forms a capacitor with the surrounding environment using frequency sweep technology, and its capacitance value depends on the dielectric constant of the medium. The capacitor and the inductor coil in the sensor circuit together form a resonant circuit. Based on the measured resonant frequency and the adjustable switch action range, the switch signal can be triggered.
• High-quality workmanship, precise measurement
• ❶ When installing the product, the outer shell needs to be connected to the metal tank to ensure the stability of the measurement; ❷ For low dielectric constant materials, the sensitivity should be lowered during debugging to ensure the accuracy of the measurement, and the operator can be used for calibration;
• ❸ For measuring different materials, the material with low dielectric constant is used as the calibration standard to meet the measurement of high dielectric constant materials; ❹ When encountering sticky materials, the sensitivity can be lowered to ensure that there is no interference from the coating during measurement; ❺ If delay/high and low position switching/hysteresis value adjustment is required, please use our company's dedicated operator to modify it.

Overview

• Brand : CIXIFM
• Style : NPN signal output
• Manufacturer : Shanghai Cixi Instrument Co., Ltd.
